| PH grade: | PH15-7Mo | Product: | PH15-7Mo Cold Rolled Stainless Steel Strip Coil |
|---|---|---|---|
| Size range: | 0.1~3.0X420mm | Delivery state: | Condition A, C |

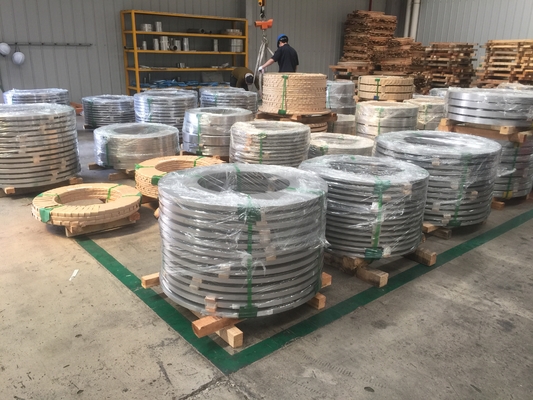

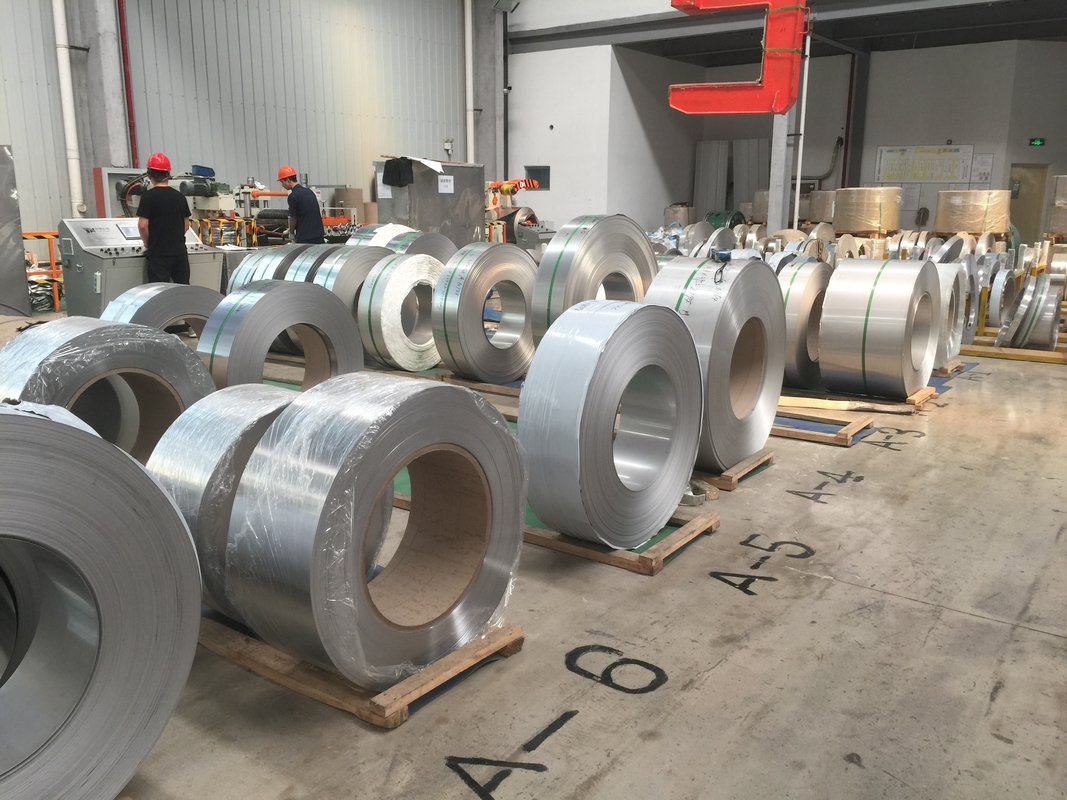

EN 1.4532 PH15-7Mo Cold Rolled Stainless Steel Strip In Coil
PH 15-7Mo, 1.4532, SUS632, UNS S15700 is a precipitation-hardening semi-austenitic stainless steel
that provides high strength and hardness, good corrosion resistance and minimum distortion
upon heat treatment.
It is easily formed in the annealed condition and develops an effective balance of properties by
simple heat treatments.
For applications requiring exceptionally high strength, cold-reduced 15-7Mo Stainless Steel in
Condition CH 900 is particularly useful for applications permitting only limited ductility and workability.
This alloy is particularly beneficial for applications requiring high strength at elevated temperatures.
APPLICATIONS
Density
(Cond. A), 0.280 lbs/in³, 7.80 g/cm³
Typical Room Temperature Mechanical Properties
| Property | A | TH1050 | RH950 | C | CH900 |
| UTS | 896 | 1448 | 1655 | 1517 | 1828 |
| 0.2% YS | 372 | 1379 | 1552 | 1310 | 1793 |
| Elongation % in 50.8mm | 35 | 7 | 6 | 5 | 2 |
| Hardness, rockwell | B88 | C44 | C48 | C45 | C50 |
PH15-7Mo stainless, the general level of corrosion resistance in Conditions TH 1050 and RH 950 is
superior to standard hardenable types of stainless such as Types 410, 420 and 431, but is not quite
as good as Type 304.
Product forms
AMS 5520 sheet, strip and plate
ASTM A693 plate, sheet and strip
